# Hardware | Overview

This article provides an overview of the types of hardware devices that will work with BLAZE POS. Additionally, a hardware diagram is provided to visualize how hardware can be connected.

*Tablet Hardware is used to operate the BLAZE POS app.*

**iPad- 10.2” screens**

- Generation 7 and 8 and up.
- Sorry, no minis.

**Android Tablet- over 10" screens (10.4 preferred)**

- Android OS 11 and up.

    - Galaxy Tab S6 Lite 10.4" (SM-P610NZBAXAC)
    - Galaxy Tab A7 10.4" (SM-T500NZAAXAC)

**Tablet Stand**

- Used to cradle your iPad or Android Device

    - [Flexipole Universal tablet stand](https://www.havis.com/product/flexipole-stand-for-tablets/)

### Payment Terminal

### [Merrco](https://support.blazepos.com/what-payment-terminals-are-supported?hsLang=en)

- PAX D210/S80 (legacy hardware, no longer shipped)
- PAX A920 (flagship hardware)
- PAX S920 (budget hardware, works the same as the A920)

### [Moneris](https://support.blazepos.com/how-to-get-started-1?hsLang=en)

- ICT250 (LAN- legacy hardware, no longer shipped)
- Moneris Core payment terminals:

    - Desk/5000 (LAN)
    - V400c (LAN)
    - Move/5000 (Wi-Fi)
    - V400m (Wi-Fi)

### Printers

### Receipt Printers

- **[mC-Print 3 Series Bluetooth/LAN receipt printer](https://support.blazepos.com/usb-connection?hsLang=en)**

    - Both Bluetooth and LAN connections can be used for front-of-store operations.
    - Scanners can be connected directly through the printer.
- **[STAR Micronics TSP-100 Bluetooth/LAN/WIFI receipt printer](https://support.blazepos.com/dual-receipt-printer-setup-BLAZE-help-center?hsLang=en)**

    - For front-of-store operations, use Bluetooth printers.
    - For back-of-store printing, use LAN printers.
- **Star Micronics TSP-650/Bluetooth receipt printer**

    - For front-of-store operations.
    - Only works for iPads Gen 7 and above
- **Star Micronics 16x16 CD3 cash drawer**

    - Connected to the Star Micronics TSP-100 or mC-Print 3 receipt printers
- **Star Micronics CD3 Cash Drawer extra tray inserts**
- **Star Micronics thermal paper rolls \[x12 per case\]**

**[mC-Print 3 Series Bluetooth/LAN receipt printer](https://support.blazepos.com/usb-connection?hsLang=en)**

- Both Bluetooth and LAN connections can be used for front-of-store operations.
- Scanners can be connected directly through the printer.

**[STAR Micronics TSP-100 Bluetooth/LAN/WIFI receipt printer](https://support.blazepos.com/dual-receipt-printer-setup-BLAZE-help-center?hsLang=en)**

- For front-of-store operations, use Bluetooth printers.
- For back-of-store printing, use LAN printers.

**Star Micronics TSP-650/Bluetooth receipt printer**

- For front-of-store operations.
- Only works for iPads Gen 7 and above

**Star Micronics 16x16 CD3 cash drawer**

- Connected to the Star Micronics TSP-100 or mC-Print 3 receipt printers

**Star Micronics CD3 Cash Drawer extra tray inserts**

**Star Micronics thermal paper rolls \[x12 per case\]**

### Label Printer

- **[Zebra ZD410](https://support.blazepos.com/buying-labels?hsLang=en)**

    - For barcoding accessories and non-cannabis items without manufacturer barcodes
    - Accepts 2" x 1", 1" core label sticker roll
- **Zebra ZD410 label rolls \[x6 per case\]**

### Scanners

- **[Star Micronics 2D Barcode Scanner](https://support.blazepos.com/scanner-models?hsLang=en)**

    - BSD-FR4080 (*Table-top USB*) 1st Choice

      *\*Only compatible with Star Micronics mC-Print3 Series Receipt Printer\**
    - BSH-HR2081 (*Handheld USB*) 2nd Choice

      *\*Only compatible with Star Micronics mC-Print3 Series Receipt Printer\**
- **[Symbol / Zebra 2D Barcode Scanner](https://support.blazepos.com/scanner-models-1?hsLang=en)**

    - Symbol DS9208 (Table-top/handheld USB) 2nd Choice
    - Zebra DS9308 (Table-top/handheld USB) 1st Choice
- **[Socket Mobile Scanner](https://support.blazepos.com/uses-of-the-socket-mobile-scanner?hsLang=en)**

    - Socket Mobile Scanner S740 (*Handheld Bluetooth*) 2nd Choice
    - Socket Mobile DuraScan D760 Barcode Scanner (*Handheld Bluetooth*) 2nd Choice
    - Socket Mobile Scanner Cradle/Dock 2nd Choice
- **POSX USB 2D barcode scanner**

    - For the back-of-house inventory management while attached to a PC
    - Not for front-of-house POS use, except for WebPOS users or mC-Print 3 users.
    - Will not work with Elos and iPads.

**[Star Micronics 2D Barcode Scanner](https://support.blazepos.com/scanner-models?hsLang=en)**

- BSD-FR4080 (*Table-top USB*) 1st Choice
- BSH-HR2081 (*Handheld USB*) 2nd Choice
- BSH-HR2081BT (*Handheld Bluetooth*) 3rd Choice

**[Symbol / Zebra 2D Barcode Scanner](https://support.blazepos.com/scanner-models-1?hsLang=en)**

- Symbol DS9208 (Table-top/handheld USB) 2nd Choice
- Zebra DS9308 (Table-top/handheld USB) 1st Choice

**[Socket Mobile Scanner](https://support.blazepos.com/uses-of-the-socket-mobile-scanner?hsLang=en)**

- Socket Mobile Scanner S740 (*Handheld Bluetooth*) 2nd Choice
- Socket Mobile DuraScan D760 Barcode Scanner (*Handheld Bluetooth*) 2nd Choice
- Socket Mobile Scanner Cradle/Dock 2nd Choice

**POSX USB 2D barcode scanner**

- For the back-of-house inventory management while attached to a PC
- Not for front-of-house POS use, except for WebPOS users or mC-Print 3 users.
- Will not work with Elos and iPads.

### Discontinued Hardware

- **Elo Paypoint Plus for iPad**

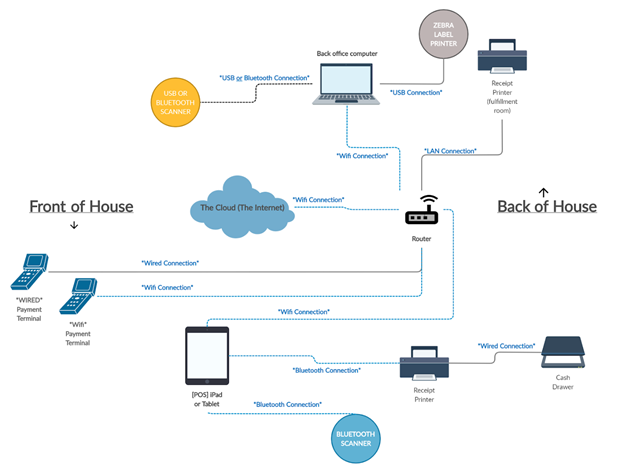

### How does the hardware connect?

[![](https://support.blaze.me/hubfs/Knowledge%20Base%20Import/downloads_intercomcdn_comio3698297480864250622627419a570e009image-Jul-25-2023-05-30-29-4954-AM-1.png)](https://support.blaze.me/hubfs/Knowledge%20Base%20Import/image-Jul-25-2023-05-30-29-2263-AM-1.png?hsLang=en)
