Retail | iOS | POS App Scale Integration

Here we will walk through the scale configuration with our BLAZE POS App. Tested and recommended to configure with the Scale | A&D EK-1200iN for optimal performance.

Prerequisites

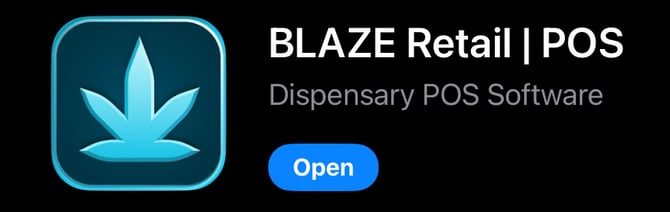

• Download BLAZE Retail | POS - (Apple store)

• yACK FAST - (Apple store)

• Scale | A&D EK-1200iN

• Female to Female Mini Gender Changer Adaptor

• BlueSnap Male DB9-M6A Adaptor

  • Adaptor: Male
  • Power: we recommend the Rechargeable Battery and Power/Charge Cable.
  • Firmware: Fast

Scale Configuration

• Connect BlueSnap Male DB9-M6A Adaptor to the Mini gender changer
• Plug into the back of the scale
• Power on BlueSnap adaptor to see a flashing light for Bluetooth discovery
• Configure scale settings
  •  bps = (2) 9600
  • btPr = (2)

yACK FAST App

• Open app
• Select the nearby BlueSnap DB9 under devices on the left side menu



• See connected after selecting the BlueSnap DB9



• Select the Command option in the upper left corner
• Enter command > set ua b 9600 and send


• After connection success, swipe up on the app to close it out and see the BlueSnap DB9 light flashing for Bluetooth discovery

BLAZE POS App

• Open BLAZE App

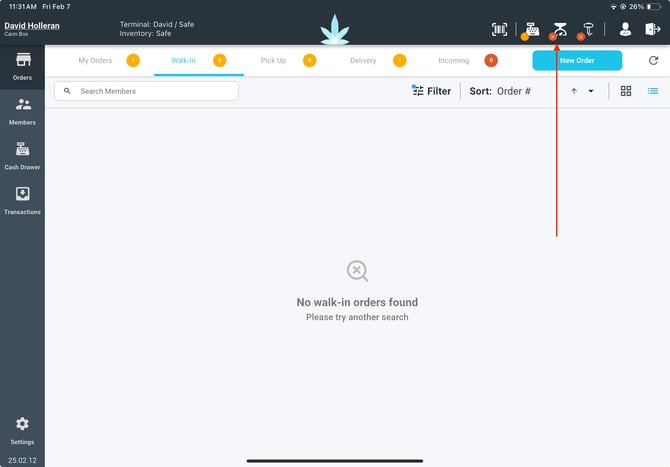

• Select the scale Icon upper right corner

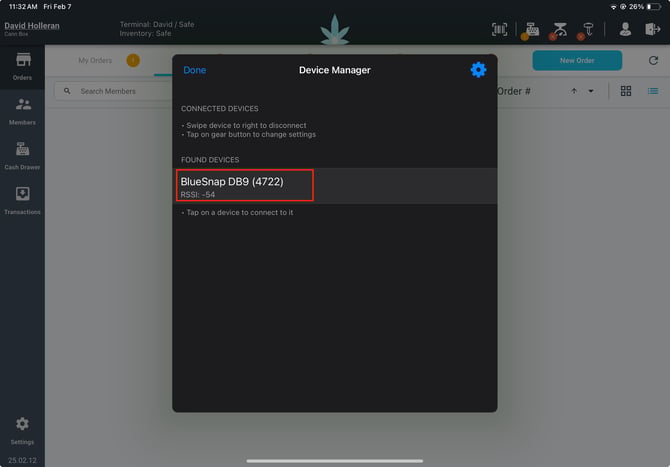

• Select the BlueSnap DB9 within the found devices

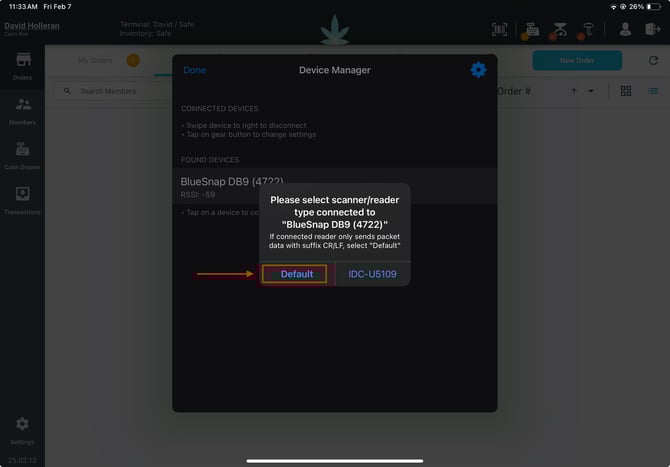

• Select the Default option


• See the successful connection with a green indicator


• Add a member to the queue
• Start the order
• Select a weight-based product

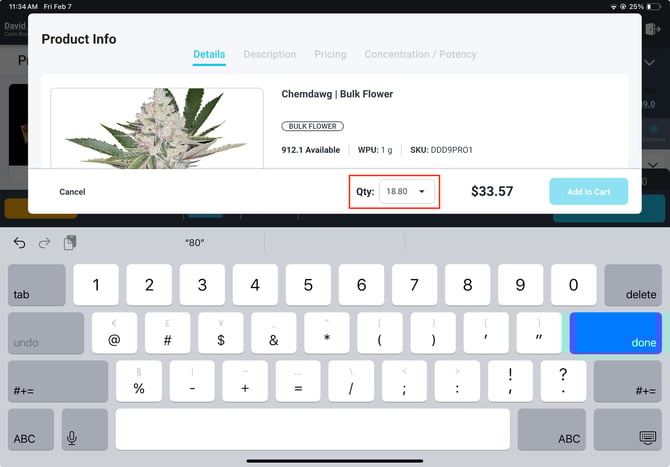

• Click into the quantity field
• Put the product on the scale and select Enter on the scale to send the command and see the weight sent to POS.
